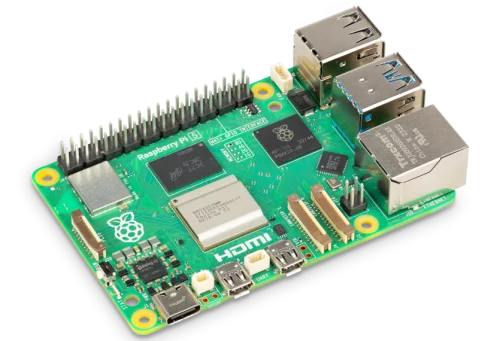

Raspberry 5

The Raspberry Pi 5 represents a significant leap forward in the Raspberry Pi series, offering enhanced performance and expanded features suitable for a variety of applications, from DIY projects to educational tools.

Specifications

• Broadcom BCM2712 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
• VideoCore VII GPU, supporting OpenGL ES 3.1, Vulkan 1.2
• Dual 4Kp60 HDMI® display output with HDR support
• 4Kp60 HEVC decoder
• LPDDR4X-4267 SDRAM (2GB, 4GB, 8GB, and 16GB)
• Dual-band 802.11ac Wi-Fi®
• Bluetooth 5.0 / Bluetooth Low Energy (BLE)
• microSD card slot, with support for high-speed SDR104 mode
• 2 × USB 3.0 ports, supporting simultaneous 5Gbps operation
• 2 × USB 2.0 ports
• Gigabit Ethernet, with PoE+ support (requires separate PoE+ HAT)
• 2 × 4-lane MIPI camera/display transceivers
• PCIe 2.0 x1 interface for fast peripherals (requires separate M.2 HAT or other adapter)
• 5V/5A DC power via USB-C, with Power Delivery support
• Raspberry Pi standard 40-pin header
• Real-time clock (RTC), powered from external battery
• Power button


💡 Notable Enhancements

• Performance Boost: The transition to the Cortex-A76 architecture and increased clock speed significantly improve processing capabilities, making it suitable for more demanding tasks.

• Expanded Connectivity: The inclusion of a PCIe 2.0 interface allows for greater expansion options, such as connecting M.2 SSDs for faster storage solutions.

• Improved User Experience: Features like the built-in RTC and power button add convenience, especially for users integrating the Pi into more complex systems.
